The 90 Degree Shoulder Mill: One Cutter Body and the Jobs It Actually Does

If a shop owns one indexable milling cutter, it is almost always a 90 degree square shoulder mill. It is genuinely the most versatile body in the rack, and it is also the one most often pushed into operations it was never built for. This article covers what it does well, what the insert code on the box is telling you, and where the limits actually are.

Why 90 Degrees Is the Default

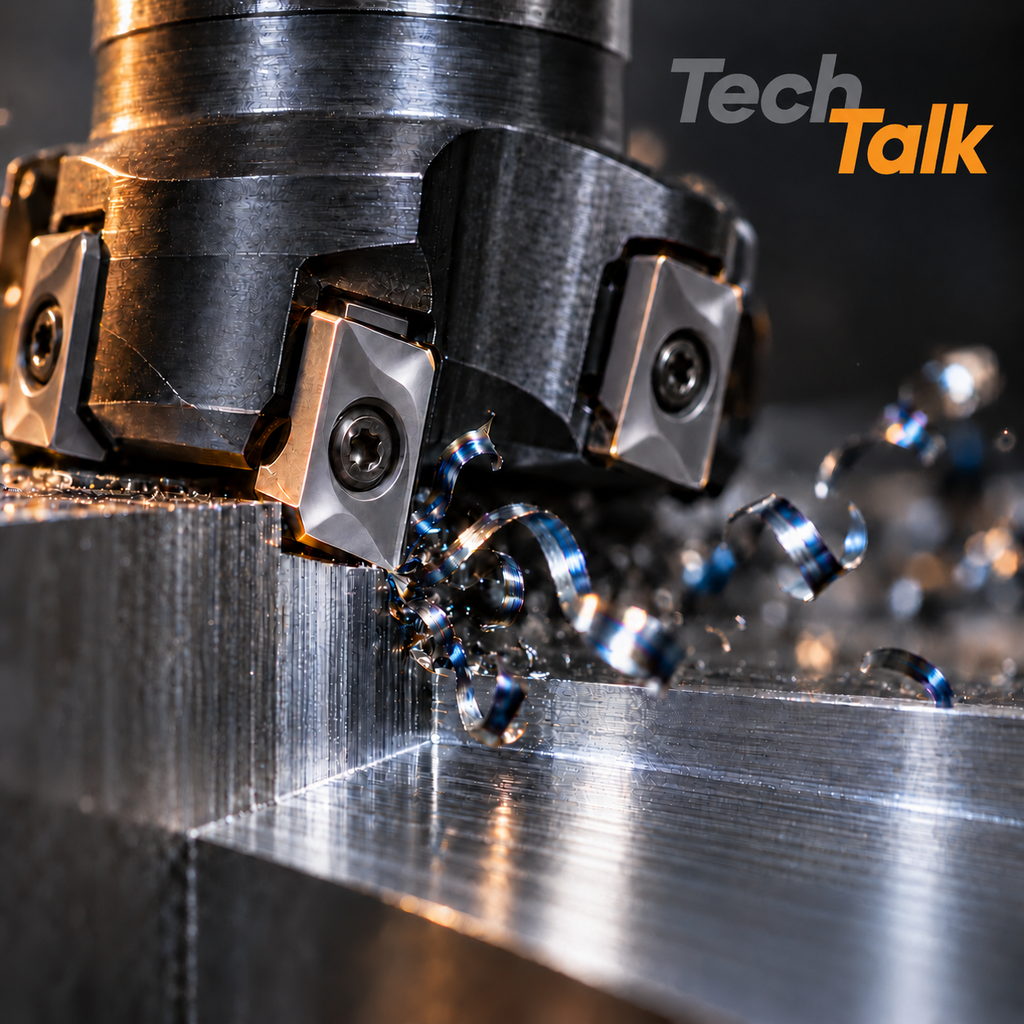

A square shoulder cutter produces a wall perpendicular to the floor in a single pass. That sounds unremarkable until you consider the alternative: a 45-degree face mill leaves a chamfered transition, and a round insert cutter leaves a radius. Either one means a second operation with a second tool to square the corner.

Prismatic parts are full of square shoulders. Pockets, steps, bosses, flanges, mounting pads. A cutter that makes the floor and the wall at the same time, in the same pass, removes a whole class of secondary operations from the program, and every operation removed takes its tool change, its approach, and its retract with it.

The trade is rigidity. Cutting at 90 degrees puts nearly all of the cutting force radially, pushing the tool away from the wall. A 45-degree cutter splits that force between radial and axial, which is why it runs quieter and takes heavier cuts on a less rigid setup. The shoulder mill gives you the square corner and asks for a solid setup in return.

Reading the Insert Code

The inserts that fit these cutters carry an ISO designation, and every character in it is a specification rather than a part number. Take one from our own shelf, APKT 160408:

• A is the insert shape, a parallelogram with an 85-degree included angle.
• P is the clearance angle, 11 degrees. This is a positive insert, which is why it cuts with lower force than a negative turning insert of the same size.
• K is the tolerance class, the one character most people skip. It tells you how tightly the insert is held on the thickness and inscribed circle.
• T describes the fixing and the face: a hole through the insert, with a chipbreaker on one side.
• 16 is the cutting edge length in millimeters, which is what governs your maximum depth of cut per pass.
• 04 is the thickness.
• 08 is the corner radius in tenths of a millimeter, so 0.8 mm here.

The Corner Radius Decides Three Things at Once

That last pair of digits looks like a detail and is not.

• It sets the fillet in your corner. A 0.8 mm radius insert such as APKT 100308 cannot produce a corner sharper than 0.8 mm. If the print calls for a sharp internal corner, no shoulder mill will give it to you.
• It sets edge strength. A larger radius spreads the load across more edge and survives interrupted cuts and hard material far better. A 0.4 mm corner is fragile by comparison.
• It changes the cutting force. A bigger radius engages more material at the corner, which raises radial force and pushes harder against the wall. On a long tool or a thin wall, that shows up as deflection you can measure.

The practical order: check what the print allows, then take the largest radius that fits, then back off if the setup starts talking to you.

What It Actually Does, and What It Only Sometimes Does

Catalogs list six operations for these cutters. Four of them are unconditional, and two come with conditions worth knowing before you program them.

Reliable:

• Shoulder milling. The job it was designed for.
• Pocket milling. Walls and floor together, with the corner radius set by the insert.
• Face milling. Works, though a dedicated 45-degree face mill gives a better finish and a quieter cut on a large flat.
• Circular and helical interpolation. Bores and large circular pockets from one cutter, which is often cheaper than stocking the drill.

Conditional:

• Ramping. Every shoulder cutter has a maximum ramp angle, and it is usually small, often only a couple of degrees. It depends on the cutter diameter and the clearance behind the insert. Program a steeper ramp than the body allows, and you rub the insert seat into the wall of the slot.
• Plunging. Straight plunging requires the cutter to cut all the way to its own center. Many shoulder bodies do not, and the ones that do say so. Assuming it works is how a cutter body gets destroyed on the first Z move.

Walls Deeper Than One Insert

Maximum axial depth per pass is roughly the insert's cutting edge length, so a 10 mm class insert gives you about 10 mm of wall and a 16 mm class about 16 mm. A deeper wall means stepping down in multiple axial passes, and that is where square shoulder work gets exacting.

Each pass has to land exactly where the previous one ended. Any error, whether from tool deflection under load, from a cutter whose 90 degrees is not truly 90, or from an axial position that is off by a few thousandths, shows up as a visible witness line at every step. On a finished wall the customer will see it and run a fingernail across it.

Two habits fix most of it. First, leave stock on the wall during the roughing passes and take a single full-depth finishing pass if the wall height allows it, so there is one continuous cut instead of a stack of them. Second, take the last pass light, because a light cut deflects less, and less deflection means a straighter wall.

Indexable or Solid Carbide

Below about half an inch the question rarely comes up, because there is no room to seat an insert, and a solid carbide end mill is the only sensible tool. Above that, the economics start to move.

An indexable body is a one-time purchase that lasts years. What you consume is inserts, and a single insert carries multiple usable corners, so the cost of a fresh edge is a fraction of replacing or regrinding a solid tool of the same diameter. At two inches and up, it stops being close. The counterargument is finish and corner sharpness, where a ground solid tool still wins, and rigidity on long overhangs, where a solid carbide body is stiffer than a steel one carrying inserts.

We covered that comparison in more depth in Indexable End Mill vs. Solid Carbide, and the question of which insert geometry suits which milling job in AOMT vs. XNEX Carbide Inserts.

What FM Carbide Stocks

We carry the insert families these cutters take in the sizes that cover most shoulder work:

• APKT in 1003 and 1604 classes, with 0.4, 0.8, and 1.6 mm corner radii, in our FM125 grade: APKT 100304, APKT 100308, APKT 100316, APKT 160404, APKT 160412, and APKT 160416.
• APMT in 1135 and 1604 classes, same grade, for roughing bodies: APMT 113504, APMT 113508, APMT 160404, and APMT 160408.
• Canela square shoulder heads and end mills from 0.625 to 1.5 inch, in one to six flute configurations, for AP 1003 and AP 1604 inserts, including long reach bodies for deep work.
• Canela shell mill cutters from 2 to 6 inches in a true 90-degree exact-angle body, for facing wide shoulders in one pass.

Browse the full range in Milling Inserts, FM Carbide Milling and Canela Milling Cutters.

What to Take Away

The square shoulder mill earns its place because it makes the floor and the wall in one pass and removes secondary operations from the program. Read the insert code rather than reordering by part number, because the tolerance class and the corner radius are decisions you are making whether you notice them or not. Size the insert to the wall you have to cut. Confirm the ramp angle and the plunge capability of the specific body before programming either. And on a deep wall, finish in one continuous pass if you can, because steps are easier to avoid than to blend.
