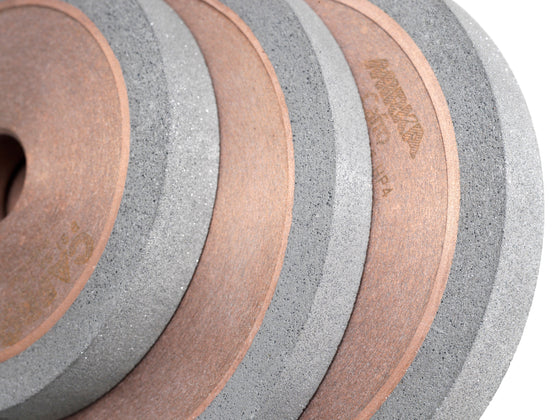

1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3SCTools
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3SCTools
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3

1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3

Fluting
$808.00
Item #
Application
X
  • Imperial: 1A1 5"x.787"x.590" T=.787" Bore 1.25" Grit D280 Concentration SQ125 Hybrid Bond HP3 (Approx.)
  • Metric: 1A1 125x20x15 T=20 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond HP3
  • Most Common Application: Fluting on CNC grinders with high-pressure coolant delivery lines. Excellent corner retention and removal rate, the best option in the market for manufacturing.
  • Recommended workpiece: Carbide round tools around 1/2" OD or larger.
  • Working parameters: 15 to 18 m/s = 2,953 to 3,543 ft/min
  • Package dimension (mm): 178x73x178
