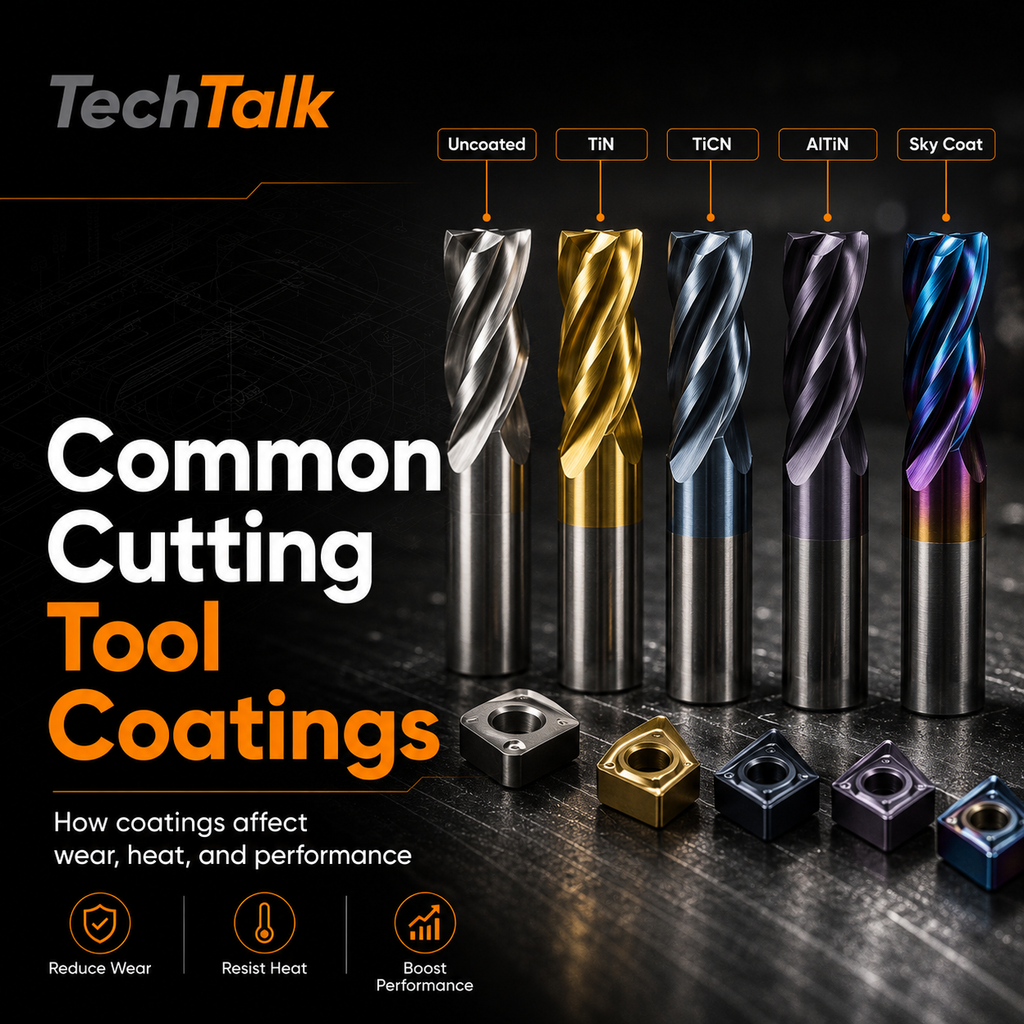

Coatings are one of the biggest levers in cutting tool performance — and one of the most misunderstood aspects. This guide covers the most common cutting tool coatings, what each does best, where each fails, and why the right selection method starts with your failure mode, not the color of the tool.
1. TiN — Titanium Nitride
TiN is the classic gold-colored cutting tool coating and one of the most recognized PVD coatings in manufacturing. It provides a practical combination of wear resistance, reduced adhesive wear, moderate heat resistance, low cost, and easy visual identification of wear.
TiN improves performance in general machining, drilling, tapping, forming, and lower-to-moderate-speed cutting. It is still widely used when a dependable, economical coating matters more than maximum high-temperature performance, and it is effective against both abrasive and adhesive wear across a broad range of tool applications.
- Common applications: general-purpose steel machining, tapping and threading, drilling, forming tools, moderate-speed operations
- Primary limitation: TiN does not provide the high-temperature oxidation resistance of newer aluminum-rich coatings such as AlTiN or AlCrN
2. TiCN — Titanium Carbonitride
TiCN adds carbon to the titanium-nitride structure. The result is generally harder and more wear-resistant than conventional TiN, and its relatively low friction also assists chip flow.
TiCN is often selected where abrasion and flank wear are more severe: carbon and alloy steels, cast iron, stainless steel under controlled conditions, tapping, punching and forming, and moderate-speed milling.
However, TiCN is not usually the first choice for extremely high cutting temperatures. It performs best when the application benefits from high hardness and wear resistance without the thermal load of aggressive dry high-speed machining. Commercial CVD systems also use TiCN inside multilayer structures—TiN–TiCN–TiN architectures are common for high-volume steel milling at moderate speeds, where the TiCN layer provides the wear resistance.
3. TiAlN — Titanium Aluminum Nitride
TiAlN was developed to perform beyond the practical temperature range of TiN and TiCN. As the coating heats during cutting, its aluminum content contributes to the formation of a protective aluminum-oxide layer that helps isolate the carbide substrate from heat and slows oxidation.
TiAlN is commonly used for alloy steels, stainless steels, tool steels, cast iron, nickel-based alloys, dry or near-dry machining, and higher-speed milling and drilling. It is particularly useful when heat is intentionally carried away by the chip instead of being controlled primarily through coolant.
- Advantages: good hot hardness, strong oxidation resistance, effective thermal protection, suitability for dry machining, broad application range
4. AlTiN—Aluminum Titanium Nitride
TiAlN and AlTiN contain the same principal elements, but the names often indicate a different balance of titanium and aluminum. AlTiN typically refers to an aluminum-rich composition. Higher aluminum content can improve oxidation resistance and high-temperature performance, although exact properties depend on coating architecture and deposition technology.
AlTiN is widely used on carbide end mills and drills for hardened steels, tool steels, stainless steel, high-temperature alloys, dry high-speed machining, and high-heat milling operations. Commercial AlTiN systems may be monolayer, multilayer, or nanolayer structures, tailored to different operating conditions.
Is TiAlN the same as AlTiN?
Not necessarily. The terminology is not perfectly standardized across manufacturers. Some suppliers use the names according to the relative concentration of titanium and aluminum, while others use proprietary naming conventions. Two tools marked “AlTiN” may not have identical aluminum content, hardness, layer architecture, surface finish, thickness, residual stress, or maximum operating temperature. The manufacturer’s application recommendation is therefore more useful than the coating name alone.
5. ZrN — Zirconium Nitride
ZrN is usually recognized by its pale-gold appearance and is commonly selected for nonferrous materials. It has good lubricity and limited chemical affinity for several nonferrous metals—characteristics that reduce material adhesion and built-up edges.
ZrN is commonly used for aluminum alloys, brass, bronze, copper, titanium in selected applications, plastics, and composites. It is often a practical step between an uncoated polished tool and a more expensive diamond-coated tool.
6. AlCrN — Aluminum Chromium Nitride
AlCrN has become an important high-performance coating for steel, stainless steel, cast iron and difficult high-temperature applications. Its combination of aluminum and chromium provides high oxidation resistance, strong hot hardness, good abrasion resistance, chemical stability, and solid performance in both wet and dry machining.
AlCrN coatings are available in monolayer, multilayer, and nanostructured designs. Modern HiPIMS AlCrN coatings can be engineered with very smooth, dense surfaces to reduce friction and support chip evacuation.
- Common applications: steel milling, stainless steel, hardened steel, cast iron, high-speed cutting, dry machining, and interrupted operations when paired with the correct substrate
AlCrN is often considered when the application generates more heat than TiN or TiCN can efficiently handle.
7. CrN — Chromium Nitride
CrN is valued less for maximum hardness than for its combination of toughness, corrosion resistance, and low tendency to adhere to certain materials. It is used in copper machining, some aluminum applications, forming and stamping tools, plastic processing, and applications involving galling or adhesive wear. CrN may also serve as a base or adhesion layer beneath more complex coating systems, including carbon-based coatings.
8. TiB₂—Titanium Diboride
TiB₂ is a specialized low-affinity coating used primarily for aluminum and other nonferrous materials. Its smooth surface and low chemical affinity for aluminum reduce built-up edges and improve chip evacuation.
Typical applications include wrought aluminum, cast aluminum, brass, copper, and other nonferrous alloys. TiB₂ is especially attractive when the application requires a sharp cutting edge but experiences more adhesion than an uncoated polished tool can tolerate.
9. DLC — Diamond-Like Carbon
Diamond-like carbon is not the same as crystalline CVD diamond. DLC is a family of carbon-based coatings designed to combine very low friction, galling resistance, adhesive-wear resistance, smooth surface behavior, and moderate-to-high hardness.
It is useful for machining or forming nonferrous materials, plastics, and applications where sliding friction is a primary concern. DLC coatings may be built over CrN, tungsten-carbide-carbon, or other intermediate layers to improve adhesion and load capacity.
10. CVD Diamond
CVD diamond is the premium choice for extremely abrasive nonferrous materials. Its exceptional hardness can provide major tool-life improvements when machining graphite, high-silicon aluminum, fiberglass, CFRP, abrasive plastics, ceramic green bodies, and composite materials.
The coating is thicker than a typical PVD coating and may require a specially prepared carbide substrate. Tool geometry, coating thickness, and edge treatment must be designed together.
Do not select diamond solely because it is the hardest coating. It is highly application-specific and is generally inappropriate for ordinary steel machining.
11. Multilayer and Nanocomposite Coatings
Many modern tools no longer use one homogeneous coating layer. A coating may include an adhesion layer against the carbide, a tough intermediate layer, alternating nanolayers to interrupt crack propagation, a hard outer layer for wear resistance, a low-friction top layer, and a colored wear-detection layer. Modern systems may alternate AlTiN and AlCrN layers to balance abrasion resistance, toughness, and thermal stability.
This is why proprietary coatings can outperform a basic coating with the same nominal chemistry—the architecture may be just as important as the chemical formula. Commercial names such as our Sky Coat and the many proprietary systems across the industry describe engineered coating architectures whose performance cannot be determined from the brand name or tool color alone.
Quick Coating Selection Guide
| Workpiece or application | Common starting choices |
|---|---|
| Aluminum, brass and copper | Uncoated polished carbide, ZrN, TiB₂, DLC |
| High-silicon aluminum | CVD diamond, diamond-like specialized coatings |
| General carbon steel | TiN, TiCN, TiAlN, AlTiN |
| Alloy and tool steel | TiAlN, AlTiN, AlCrN |
| Hardened steel | AlTiN, AlCrN, nanocomposite coatings |
| Stainless steel | TiAlN, AlTiN, AlCrN; application-specific PVD grades |
| Cast iron | TiAlN, AlTiN, AlCrN or CVD-coated inserts |
| Nickel-based superalloys | Application-specific PVD TiAlN, AlTiN or AlCrN |
| Graphite and abrasive composites | CVD diamond |
| Forming and anti-galling applications | CrN, DLC, TiCN |
| Stable high-speed turning | Multilayer CVD carbide grades |
| Interrupted milling or unstable setups | Tough substrate with a thinner PVD coating |
Treat this table as a starting point—not as a replacement for the tool manufacturer’s cutting-data recommendation.
Why Hardness Alone Does Not Select the Best Coating
Coating charts often emphasize nanohardness, coefficient of friction, and maximum service temperature. Those numbers are useful, but they do not provide a complete selection method. A very hard coating may fail prematurely if
- It is too brittle for an interrupted cut
- The substrate lacks adequate toughness
- The edge preparation is too sharp or too heavily honed
- The coating has poor adhesion to the substrate
- The machine setup vibrates
- Chip recutting damages the coating
- Coolant repeatedly thermally shocks the cutting edge
- The coating reacts with the workpiece material
Conversely, a moderately hard, smooth coating on the correct carbide substrate may outperform a harder coating because it better controls adhesion, friction, or crack propagation.
Do Not Select a Coating by Color
Gold often suggests TiN; pale gold may suggest ZrN; bronze may suggest TiCN; and dark gray or black may suggest TiAlN, AlTiN, or AlCrN. However, color is not a reliable technical specification. Color can change because of chemical composition, layer thickness, surface oxidation, top layers, deposition process, or manufacturer-specific treatment.
Two coatings that appear identical may have significantly different properties, while two coatings with different colors may have similar application ranges. Always verify the actual coating designation and manufacturer recommendation.
The Bottom Line
There is no universal best cutting tool coating.
- TiN remains a dependable economical coating for general applications
- TiCN adds hardness and abrasion resistance
- TiAlN and AlTiN handle higher temperatures in steels, stainless steels and difficult alloys
- AlCrN provides strong oxidation resistance and broad high-performance capability
- ZrN and TiB₂ help control aluminum adhesion and built-up edge
- DLC reduces friction and galling in selected low-to-moderate-temperature applications
- CVD diamond dominates extremely abrasive nonferrous materials and composites
- Multilayer CVD systems remain essential for stable, productive insert machining
The most effective coating is not necessarily the one with the highest hardness or thermal rating. It is the one whose chemistry, thickness, architecture, and surface characteristics match the material, operation, and wear mechanism.
