Built-Up Edge: Why Material Welds to Your End Mill — and How Coatings and Geometry Stop It

Last week we looked at the physics of HiPIMS sputtering and why coating density matters. This week we put that science to work against one of the most common—and most misdiagnosed—tool killers on the shop floor.

The symptoms are familiar. The surface finish that was fine on Monday is torn and smeared by Wednesday. Hole and slot dimensions start drifting oversize. The spindle load creeps up. Then, "out of nowhere," the cutting-edge chips. Nine times out of ten, nothing was wrong with the tool—the tool was cutting through a lump of your workpiece material welded onto its edge. That lump is called built-up edge (BUE), and it is one of the most expensive habits a machining operation can pick up.

What built-up edge actually is

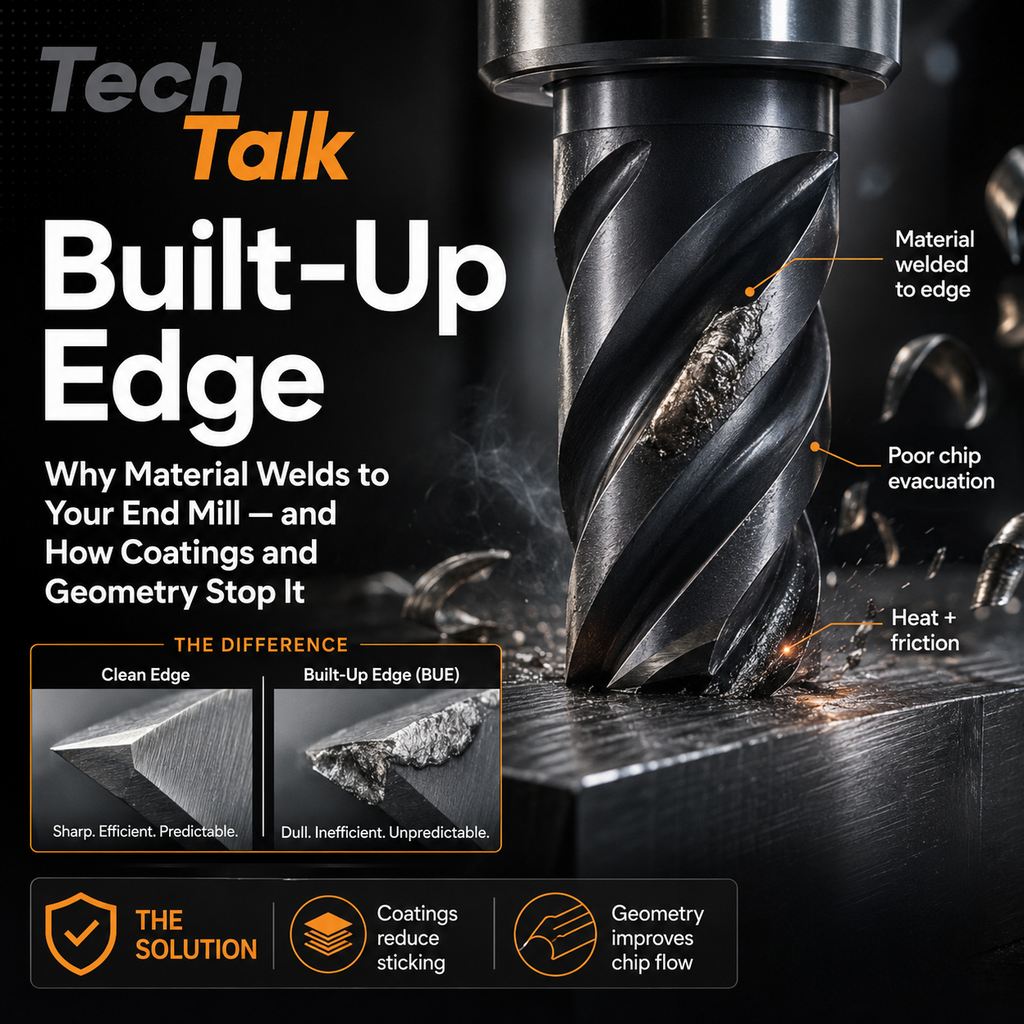

In the cutting zone, fresh metal is being sheared under enormous pressure and heat. Under those conditions, some workpiece materials do not just slide over the cutting edge—they pressure weld to it. Layer by layer, material stacks up on the rake face until the built-up lump, not the carbide, becomes the effective cutting edge.

The problem is that this new "edge" is unstable. It changes the tool's effective geometry, pushes dimensions off target, and rubs instead of shearing. Then it breaks loose — and when it goes, it often takes coating fragments and micro-sections of the carbide edge with it. The cycle restarts immediately: weld, grow, tear, and damage. Every cycle degrades the finish and the tool a little more.

Watch for these signs:

• Torn, smeared or inconsistent surface finish that worsens over the course of a run
• Dimensions drifting oversize as the built-up lump "grows" the effective tool diameter
• Rising spindle load or cutting noise without a change in parameters
• Edge chipping that appears sudden but was actually days in the making
• A dull, gray smear of foreign material visible on the rake face under magnification

Why stainless, chromium alloys and aluminum the usual suspects

Three properties make a material a BUE machine, and some alloys have all of them at once:

• High plasticity. Austenitic stainless steels like 304 and 316 and the chromium grades used across the energy sector (13Cr and 28Cr) deform instead of separating cleanly. That long, plastic contact with the rake face is precisely what pressure-welding needs.
• Low thermal conductivity. These same alloys are poor at carrying heat away in the chip, so the heat concentrates right at the cutting edge—raising the local temperature into the welding zone.
• Chemical affinity for the tool. Aluminum is the classic case: soft, gummy, and eager to bond. It machines easily, yet loads up flutes and welds to edges faster than almost anything else in the shop.

Add work hardening—stainless steel hardens as you rub it, and BUE guarantees rubbing—and you get the vicious circle that makes these materials feel so much harder to machine than their spec sheets suggest.

The coating as a barrier—and why deposition quality matters

A coating fights BUE two ways: it reduces friction so chips slide instead of sticking, and it acts as a thermal shield that keeps cutting heat in the chip and away from the carbide. But not all coatings fight equally, and—as we covered in the HiPIMS article—how a coating is deposited matters as much as its chemistry. Denser, smoother coating surfaces with fewer droplet defects give workpiece material fewer anchor points to grab. A smooth coating is, quite literally, harder to weld to.

Here is how the common options line up against BUE, from our catalog:

• Uncoated carbide—the sharpest possible edge, and sharpness is itself an anti-BUE weapon: a keen edge shears cleanly instead of plowing. This is the default choice for aluminum, brass, and plastics. See, for example, our uncoated square end mills.
• TiN (titanium nitride) — the classic gold coating. Adds lubricity and surface hardness for general steel work at moderate speeds.
• TiCN (titanium carbonitride) — harder and more abrasion-resistant than TiN, with the toughness for interrupted cuts. A strong choice in stainless and tool steels, like our TiCN-coated square end mills.
• AlTiN (aluminum titanium nitride) — the heat specialist. At cutting temperature it forms a hard, heat-resistant surface layer exactly where the edge runs hottest, which is why AlTiN-coated end mills excel in hard steels, high-temperature alloys, and dry machining. One practical warning: aluminum-bearing coatings have chemical affinity with aluminum workpieces—for aluminum, stay uncoated.
• Sky Coat is HTC's performance coating that adds edge hardness and heat resistance for higher speeds and harder materials, and it is available across lines such as our Sky Coat ball nose end mills for 3D and contour work.

One more place BUE quietly costs money: hole finishing. A built-up edge on a reamer produces exactly what a reamer exists to prevent—oversize, torn holes. The fix is a sharp solid carbide reamer, a light and even amount of stock, and generous coolant for the cut.

Five levers besides the coating

• Raise your surface speed. BUE thrives in a low-to-mid-speed window where the edge is hot enough to weld but not hot enough to keep the chip flowing. Running faster —faster, where the tool and coating allow it,akes BUE vanish.
• Keep the feed up. Chips that are too thin rub instead of cutting, and rubbing is a BUE factory. A proper chip load keeps the edge shearing instead of rubbing.
• Climb the mill. Starting the cut at full chip thickness and exiting thin reduces the rubbing that friction-welds material to the edge.
• Get the chips out — and the coolant in. Recut chips weld readily. Directed coolant or an air blast at the cutting zone breaks the weld cycle and pulls heat out of the interface.
• Never nurse a dull edge. A worn edge cuts with more pressure and more heat—both feed the weld. The most expensive tool in the shop is the one you kept running two hours too long.

The takeaway

A built-up edge is not bad luck, and it is not a defective tool. It is pressure, heat, and chemistry doing what they always do—until you take one of those three ingredients away. Match the coating to the material, keep the edge sharp and moving fast enough, and give the chips somewhere to go. Your surface finishes, your tolerances, and your tooling budget will all show the difference.

Questions about matching a coating to a specific alloy or application? Talk to us and browse the full range at FM Carbide.
