PSC Modular Tooling Explained: The Polygon Coupling, the Six Sizes and How to Build a Chain

Most turning tools are one piece of steel: a shank that lives in the turret and a pocket that holds the insert. A modular system cuts that piece in two. The half that belongs to the machine stays put; the half that cuts comes off, and another goes on, in seconds, and lands where the last one was. That is the whole idea behind PSC. Here is what the polygon coupling actually is, how the six sizes are chosen, and how the three links of every chain go together, with the references and prices we have online.

What the polygon actually is

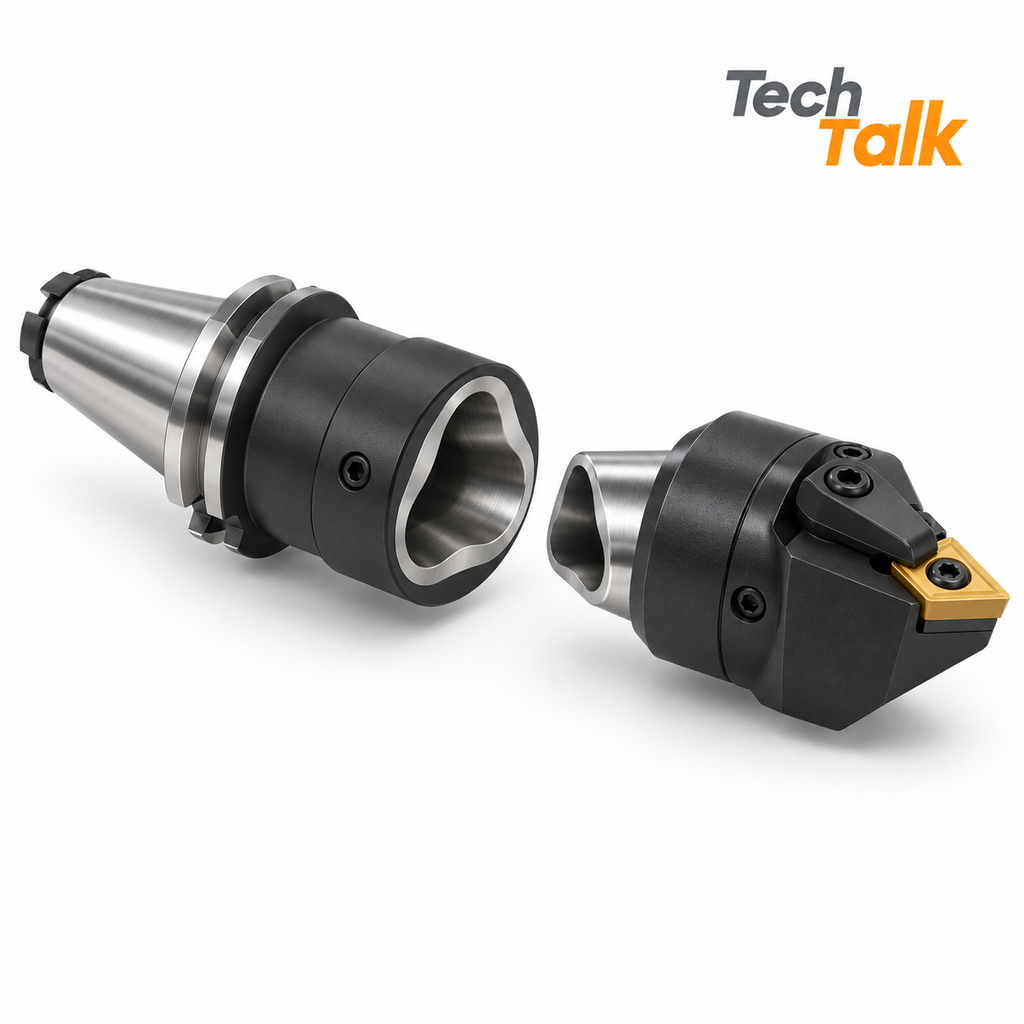

PSC stands for polygonal shank coupling. Canela builds its modular line to ISO 26623-1, the standard that defines the coupling geometry, so a PSC50 head from one maker mates with a PSC50 socket from another. Look at the end of any PSC head, and you see the shape at once: not a round taper, not a hexagon, but a rounded triangle, three convex lobes running into each other with no flat and no corner, tapering toward the tip and hollow through the middle.

That shape does three jobs that a round taper needs extra parts to do. Because it is a polygon, it transmits torque on its own: no drive keys, no flats, and no dog to line up. Because it is tapered, it centers itself as it is drawn in. And because the head is pulled in until its flange face seats against the socket face, you get taper contact and face contact at the same time, which is what gives the joint its stiffness under an interrupted cut and its repeatability when you swap heads. The pull comes from inside: a clamping mechanism in the socket grips the hollow polygon and draws it home, so there is nothing sticking out of the coupling to snag a chip or a hand.

The practical consequence is the one that matters on the shop floor: a head that comes off and goes back on returns to the same position within a few microns. Change from a turning head to a boring bar to an indexable drill on the same station, and the tool offsets you measured yesterday are still good.

Why a shop goes modular

A conventional turret holds one tool per station, and every one of those tools carries its own shank all the way back into the turret. With PSC, each station carries a machine adaptor once, and only the cutting end changes. Three things follow from that.

Changeovers get short. Swapping a head is a matter of loosening and tightening one clamping unit, not pulling a square shank, cleaning the pocket, and re-touching the tool. On a machine that runs several part numbers a day, this is where the system pays for itself.

Offsets survive the swap. Because the head repeats, a head that was preset off the machine goes on and cuts to size. Shops that run a presetter keep a shelf of preset heads and treat them like inserts.

Inventory shrinks. A turning head, a boring bar, a threading head, and a drill for the same machine share one adaptor and one coupling size. You stop buying the same shank four times. The trade-off is up front: a machine adaptor is a real piece of tooling, and you buy one per station before the first head goes on. That is why the sizing decision below matters.

The six sizes and how to pick one

The number after PSC is the nominal diameter of the coupling in millimeters. Canela runs all six sizes of the standard, and every one of them is priced online; the counts are what we have in the store today.

The size is almost never your choice. If the machine came with a PSC turret or a PSC spindle, the size is stamped on it, and you buy to match. If you are adding PSC to a machine with a conventional turret, the size is set by the machine adaptor that fits your station: the biggest coupling the station can carry is the one to buy, because coupling diameter is what buys you stiffness. PSC50 is the size most shops land on for a 2-axis lathe, which is also why it is the size with the most references.

The three links of every chain

Every PSC setup, however long, is the same three links. Get the vocabulary straight, and the catalog stops being 1,553 lines and becomes three shelves.

1. The machine side

This is the part that never moves. On a lathe with a conventional turret, it is a turning adaptor, a block with a square or round shank that sits in the station and offers a PSC socket, axial or radial. On a machining center or a milling turret, it is a machine adaptor with a standard spindle taper at one end, DIN 69871-A, BT (JIS B 6339) or HSK-A, and a PSC socket at the other. Start here, because the taper and the station are the two things the machine will not negotiate.

2. The middle, when you need one

Most chains have nothing here. When the head has to reach farther, an extension keeps the same size at both ends and adds length. When the machine coupling is bigger than the head you want to run, a reducer steps down, PSC63 to PSC50, say. A blank adaptor is a nitrided PSC blank left for you to machine into a special. Every piece you add here costs stiffness, so the rule is the same as for a boring bar: the shortest chain that reaches is the right chain.

3. The cutting end

This is where the variety lives, and it splits in two. Cutting heads carry the insert directly: turning heads in every common insert shape and lead angle, boring bars sized by minimum bore, threading heads and bars, parting and grooving heads, top notch heads, and indexable drills. Tool adaptors carry a tool you already own: an ER collet chuck for an end mill or a drill, a shell mill arbor, a boring bar holder, a Morse taper socket, or a tapping head. Same polygon on the back of all of them.

Build your chain

Pick what your machine gives you and the size you run. The three links come back as live searches of the store, filtered to that size.

What the head takes and what it comes with

A PSC head is bought by the insert; it runs the same way a conventional holder does. Every head page on our site states the ISO insert size it takes: CNMG 43, DNMG 44, WNMG 43, VBMT 33, and the rest; across the line that is 23 insert codes, all from families we stock. The last two digits of a Canela head reference are the inscribed circle of that insert in millimeters, so a -12 head takes a 1/2" IC insert and a -16 head a 5/8".

The page also lists the spare parts for that head, the clamp, screw, shim seat, and wrench, with prices, and the tightening torque. Those numbers come straight from the Canela catalog, and they are the ones to use: a polygon head clamps the insert exactly like the square-shank holder it replaces, and over-torquing a small screw is the most common way to lose one.

A worked example, at today's prices

Say you run a 40-taper machining center with a turning head on the spindle for facing and boring, and you have settled on PSC50. The chain is

Machine side. A DIN 69871-A 40 to PSC50 machine adaptor, $399.49 at the time of writing. One per machine; it does not leave the spindle.

Cutting end, external. A PSC50-DCKNR35060-12 turning head, 75° lead, right hand, $295.75. It takes a CNMG 43 insert, which is on the shelf in several grades and chipbreakers.

Cutting end, internal. A PSC50-DCLNR13080-09 boring bar, 1.102" minimum bore, 95° lead, $414.20, on the same adaptor, taking a CCMT 32.5 insert.

Add an indexable drill, 15 mm, 3xD at $508.65 and a PSC50 collet chuck for ER16 at $388.20, and that one spindle now faces, bores, drills, and runs your solid carbide end mills, changing heads in seconds and holding the offsets between them. The adapter is bought once; everything after it is a cutting head.

FAQ

Is Canela PSC compatible with other makers' polygon couplings?
Canela builds to ISO 26623-1, and the standard exists so that couplings of the same nominal size mate across makers. Confirm the size and the clamping unit with your machine builder before mixing, especially on a turret with integrated clamping.

Can I use PSC on a machine that did not come with it?
Yes. That is what the turning adaptors and machine adaptors are for. A square-shank turning adaptor puts a PSC socket in an ordinary turret station; a machine adaptor puts one on a DIN, BT, or HSK spindle.

Does the head clamp the insert differently from a square-shank holder?
No. The insert seat, the clamp, and the torque are the same systems you know from ISO toolholders: dimple lock, lever lock, and center screw. Only the shank changed.

How do I choose between PSC40 and PSC50?
Take the largest coupling your station will carry. A larger polygon is a stiffer joint, and stiffness is the whole reason to buy the system. Go smaller only when the station or the part forces you to.

The bottom line

PSC is not a new way to hold an insert. It is a new place to cut the tool in two, at a rounded-triangle coupling that carries torque, centers itself, and repeats, so the half that belongs to the machine stays there and the half that cuts becomes as easy to change as the insert was. Start from the taper and the station, take the biggest size they allow, and read the head by the insert it runs. The whole Canela PSC line, 1,553 references in six sizes, is priced online: the cutting heads, the machine adaptors, extensions and reducers, and the tool adaptors. If you would rather read the square-shank side first, start with the complete guide to CNC tool holders and boring bar nomenclature, decoded; both apply to a PSC head from the coupling forward. The full Canela range is on one page.
