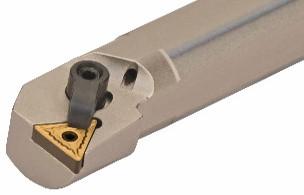

A24U-MTFN R 4 - 90° Side & End Cutting Edge Angle

Right Hand Boring Bar A24U-MTFN 4 - 90° Side & End Cutting Edge Angle - OAL = 14"

Cutting Length = 3" Internal turning and profiling boring bar equipped with triangular negative double-sided insert.

Specifications

• Model: A24U-MTFNR4
• Bar diameter (D): 1.500"
• Minimum bore (A): 1.780"
• Overall length (L1): 14.00"
• Head length (L2): 3.00"
• Centre height (f): 0.890"
• Dimension h: 1.370"
• Dimension h1: 0.685"
• Insert: TNM..43..
• Weight: 8.250 lb
• Brand: Canela

Dimensions and weight as published in the Canela catalog. Dimension letters follow the Canela catalog diagram.
