1.625" Indexable Drill — Canela, FM Carbide
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Drill — Canela, FM Carbide
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL
1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL

1.625" Indexable Insert Drill — 3xD, 4.875" Max Depth, 9.187" OAL

Drills
$475.92 each
OD
Maximum Depth
Insert
Quantity
- +

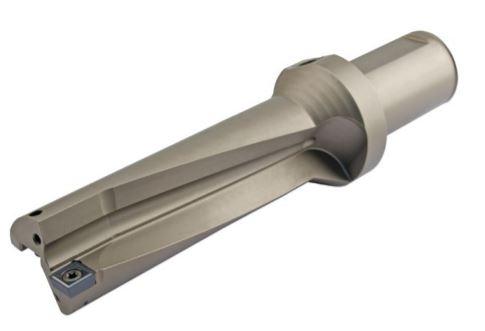

Canela 1.625" indexable insert drill, takes SPMT1204 inserts. Indexable insert drill body. Drills to the stated maximum depth in one pass with replaceable inserts, so the body is not reground.

Specifications

  • Drill diameter: 1.625"
  • Maximum drilling depth: 4.875"
  • Depth capacity: 3xD
  • Overall length (OAL): 9.187"
  • Insert size: SPMT1204
  • Brand: Canela

Dimensions in inches. Insert size as published in the Canela catalog.

Spare parts for this tool

Published by Canela for this holder. Sold individually — no minimum.
