3/8" Keyset Cutter with Hardened Steel Shank. ANSI 303 - Face Width 3/32" OAL 2-3/32" Shank OD 1/2" - 8 Flutes - Uncoated
3/8" Keyseat Cutter with Hardened Steel Shank. ANSI 303 - Face Width 3/32" OAL 2-3/32" Shank OD 1/2" - 8 Flutes - Uncoated
3/8" Keyset Cutter with Hardened Steel Shank. ANSI 303 - Face Width 3/32" OAL 2-3/32" Shank OD 1/2" - 8 Flutes - Uncoated
3/8" Keyseat Cutter with Hardened Steel Shank. ANSI 303 - Face Width 3/32" OAL 2-3/32" Shank OD 1/2" - 8 Flutes - Uncoated

3/8" Keyseat Cutter with Hardened Steel Shank. ANSI 303 - Face Width 3/32" OAL 2-3/32" Shank OD 1/2" - 8 Flutes - Uncoated

Keyseat Cutter
$33.68 each
Item #
Shape
Coating

3/8" keyseat cutter, 3/32" face width, 8 flutes.

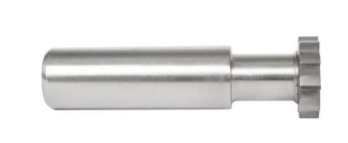

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 3/8" diameter with a 3/32" face width on a 1/2" shank, 2-3/32" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 3/8"
  • Face width: 3/32"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-3/32"
  • Flutes: 8
  • ANSI number: 303
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 91975
