Keyseat Cutter
$39.57 each
Item #
Shape
Coating

5/8" keyseat cutter, 3/32" face width, 10 flutes.

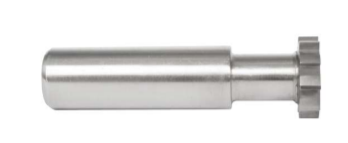

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 5/8" diameter with a 3/32" face width on a 1/2" shank, 2-3/32" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 5/8"
  • Face width: 3/32"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-3/32"
  • Flutes: 10
  • ANSI number: 305
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 91979
