3/4" Keyset Cutter with Hardened Steel Shank. ANSI 806 - Face Width 1/4" OAL 2-1/4" Shank OD 1/2" - 10 Flutes - Uncoated
3/4" Keyseat Cutter with Hardened Steel Shank. ANSI 806 - Face Width 1/4" OAL 2-1/4" Shank OD 1/2" - 10 Flutes - Uncoated
3/4" Keyset Cutter with Hardened Steel Shank. ANSI 806 - Face Width 1/4" OAL 2-1/4" Shank OD 1/2" - 10 Flutes - Uncoated
3/4" Keyseat Cutter with Hardened Steel Shank. ANSI 806 - Face Width 1/4" OAL 2-1/4" Shank OD 1/2" - 10 Flutes - Uncoated

3/4" Keyseat Cutter with Hardened Steel Shank. ANSI 806 - Face Width 1/4" OAL 2-1/4" Shank OD 1/2" - 10 Flutes - Uncoated

Keyseat Cutter
$58.57 each
Item #
Shape
Coating

3/4" keyseat cutter, 1/4" face width, 10 flutes.

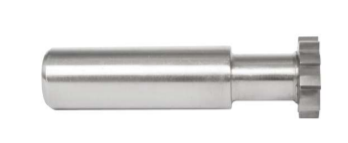

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 3/4" diameter with a 1/4" face width on a 1/2" shank, 2-1/4" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 3/4"
  • Face width: 1/4"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-1/4"
  • Flutes: 10
  • ANSI number: 806
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 91986
