7/8" Keyset Cutter with Hardened Steel Shank. ANSI 507 - Face Width 5/32" OAL 2-5/32" Shank OD 1/2" - 12 Flutes - Uncoated
7/8" Keyseat Cutter with Hardened Steel Shank. ANSI 507 - Face Width 5/32" OAL 2-5/32" Shank OD 1/2" - 12 Flutes - Uncoated
7/8" Keyset Cutter with Hardened Steel Shank. ANSI 507 - Face Width 5/32" OAL 2-5/32" Shank OD 1/2" - 12 Flutes - Uncoated
7/8" Keyseat Cutter with Hardened Steel Shank. ANSI 507 - Face Width 5/32" OAL 2-5/32" Shank OD 1/2" - 12 Flutes - Uncoated

7/8" Keyseat Cutter with Hardened Steel Shank. ANSI 507 - Face Width 5/32" OAL 2-5/32" Shank OD 1/2" - 12 Flutes - Uncoated

Keyseat Cutter
$65.23 each
Item #
Shape
Coating

7/8" keyseat cutter, 5/32" face width, 12 flutes.

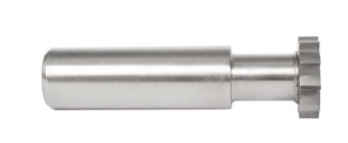

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 7/8" diameter with a 5/32" face width on a 1/2" shank, 2-5/32" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 7/8"
  • Face width: 5/32"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-5/32"
  • Flutes: 12
  • ANSI number: 507
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 91987
