1" Keyset Cutter with Hardened Steel Shank. ANSI 608 - Face Width 3/16" OAL 2-3/16" Shank OD 1/2" - 12 Flutes - Uncoated
1" Keyseat Cutter with Hardened Steel Shank. ANSI 608 - Face Width 3/16" OAL 2-3/16" Shank OD 1/2" - 12 Flutes - Uncoated
1" Keyset Cutter with Hardened Steel Shank. ANSI 608 - Face Width 3/16" OAL 2-3/16" Shank OD 1/2" - 12 Flutes - Uncoated
1" Keyseat Cutter with Hardened Steel Shank. ANSI 608 - Face Width 3/16" OAL 2-3/16" Shank OD 1/2" - 12 Flutes - Uncoated

1" Keyseat Cutter with Hardened Steel Shank. ANSI 608 - Face Width 3/16" OAL 2-3/16" Shank OD 1/2" - 12 Flutes - Uncoated

Keyseat Cutter
$72.28 each
Item #
Shape
Coating

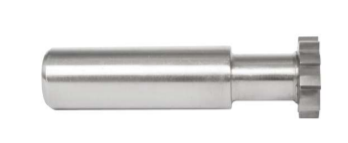

1" keyseat cutter, 3/16" face width, 12 flutes.

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 1" diameter with a 3/16" face width on a 1/2" shank, 2-3/16" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 1"
  • Face width: 3/16"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-3/16"
  • Flutes: 12
  • ANSI number: 608
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 91991
