1-1/2" Keyset Cutter with Hardened Steel Shank. ANSI 1012 - Face Width 5/16" OAL 2-5/16" Shank OD 1/2" - 16 Flutes - Uncoated
1-1/2" Keyseat Cutter with Hardened Steel Shank. ANSI 1012 - Face Width 5/16" OAL 2-5/16" Shank OD 1/2" - 16 Flutes - Uncoated
1-1/2" Keyset Cutter with Hardened Steel Shank. ANSI 1012 - Face Width 5/16" OAL 2-5/16" Shank OD 1/2" - 16 Flutes - Uncoated
1-1/2" Keyseat Cutter with Hardened Steel Shank. ANSI 1012 - Face Width 5/16" OAL 2-5/16" Shank OD 1/2" - 16 Flutes - Uncoated

1-1/2" Keyseat Cutter with Hardened Steel Shank. ANSI 1012 - Face Width 5/16" OAL 2-5/16" Shank OD 1/2" - 16 Flutes - Uncoated

Keyseat Cutter
$127.67 each
Item #
Shape
Coating

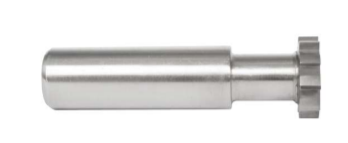

1-1/2" keyseat cutter, 5/16" face width, 16 flutes.

A keyseat (Woodruff) cutter for milling keyways, slots and undercuts. It cuts 1-1/2" diameter with a 5/16" face width on a 1/2" shank, 2-5/16" overall.

The staggered teeth cut on the periphery, so the tool feeds sideways into an existing opening rather than plunging.

Specifications

  • Cutter diameter: 1-1/2"
  • Face width: 5/16"
  • Shank diameter: 1/2"
  • Overall length (OAL): 2-5/16"
  • Flutes: 16
  • ANSI number: 1012
  • Shank: Hardened Steel Shank
  • Coating: Uncoated
  • Item number: 92001
